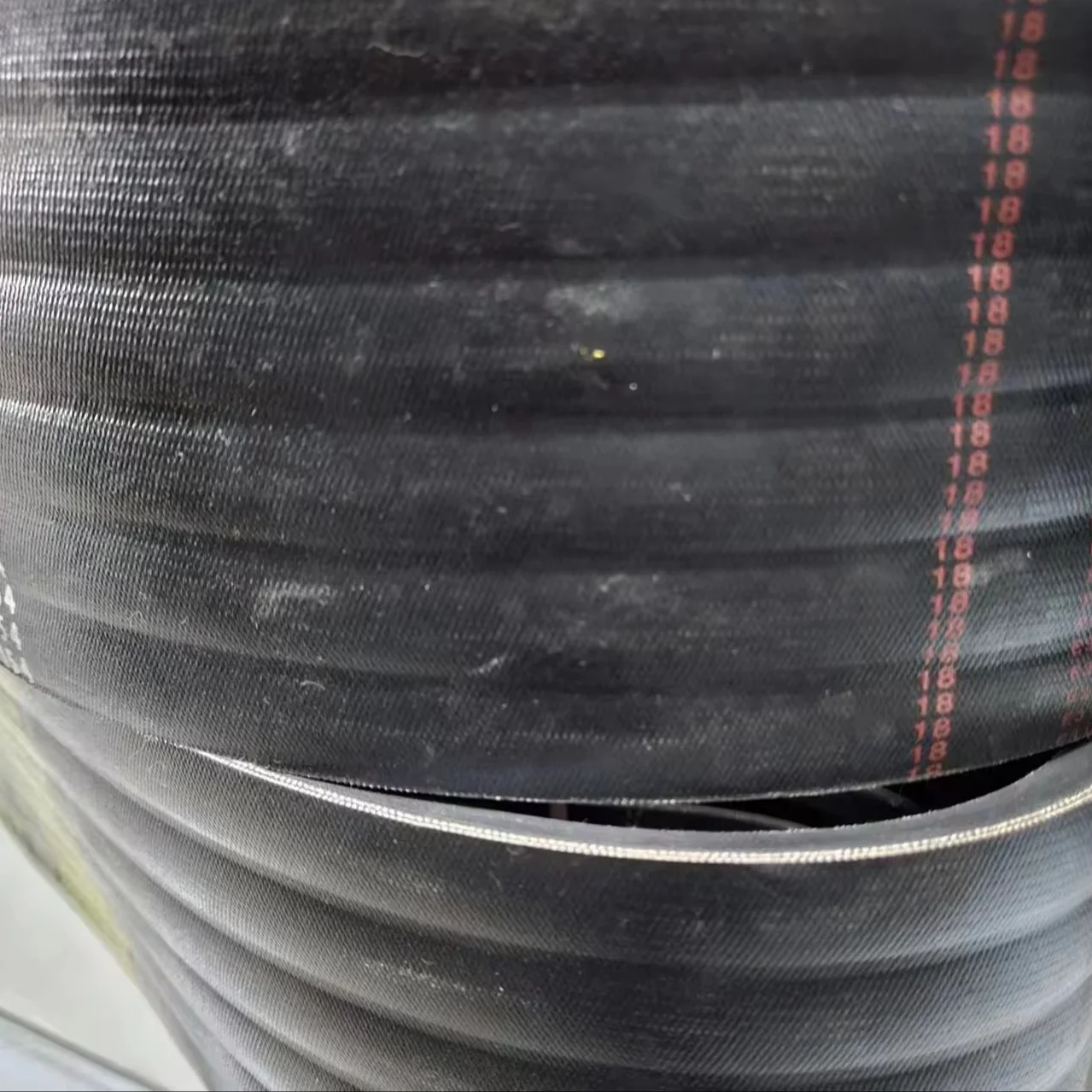

3/B154 Classic Banded V-Belt

$3.00 USD $0.00 USD
Color
Please select Color
B-95
B-90
B-100
B-112
B-118
B-120
B-128
B-152
B-158
B-162
B-173
Quantity
Only left
Volume Pricing
Quantity
Price
1+
undefined each
Description
Product Description

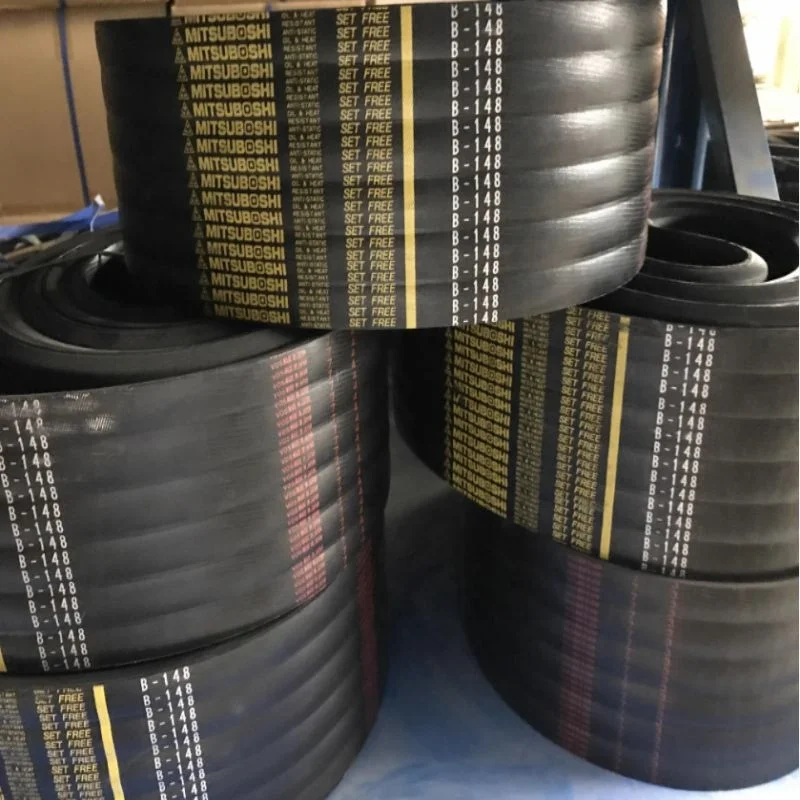

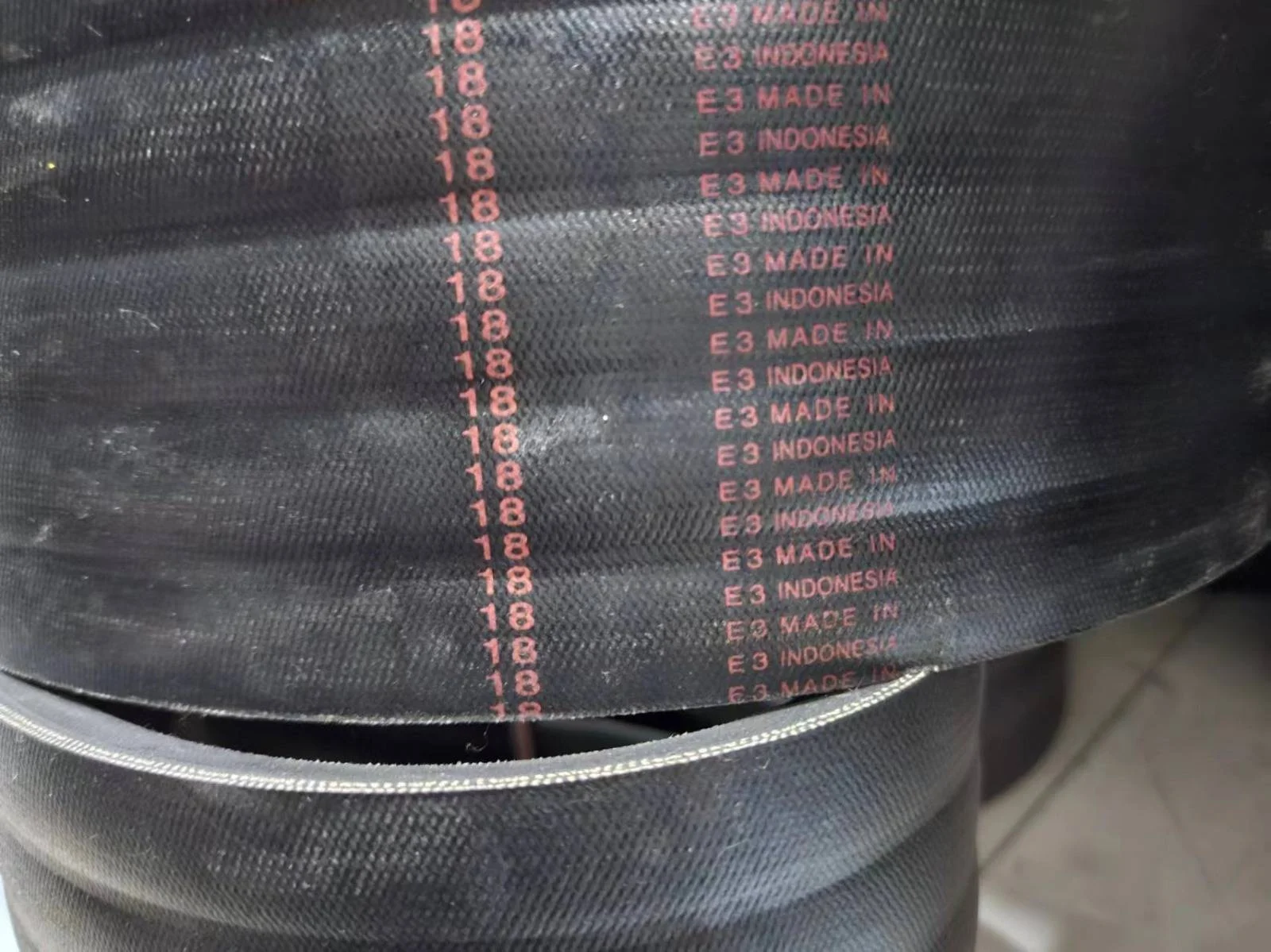

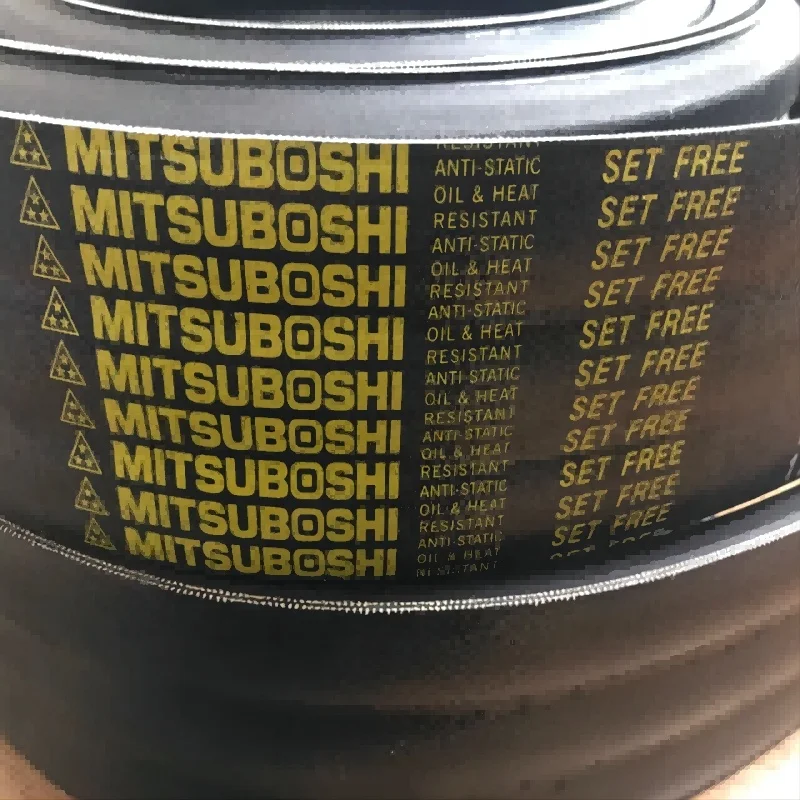

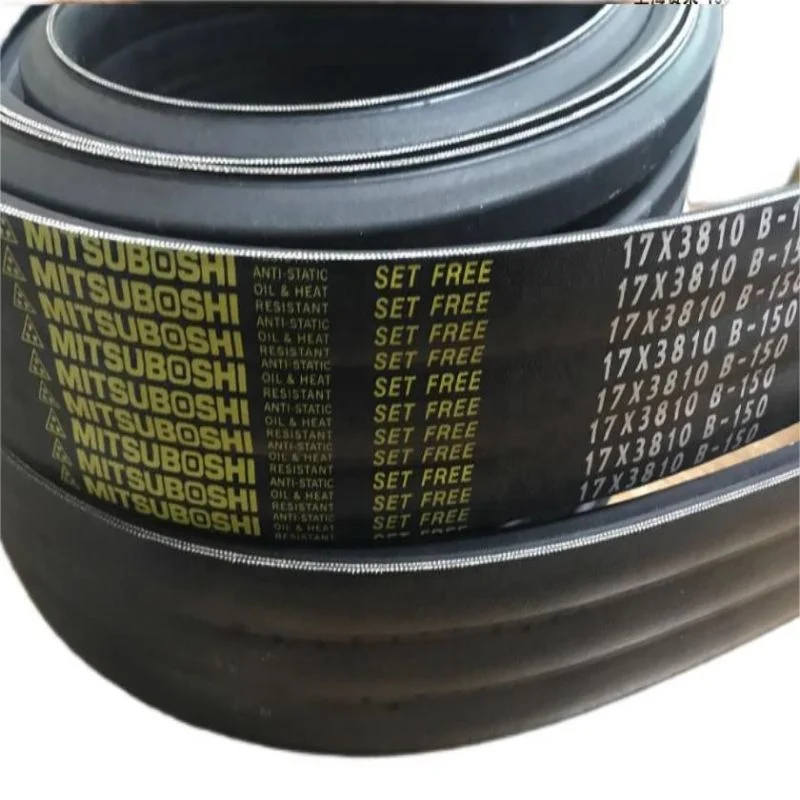

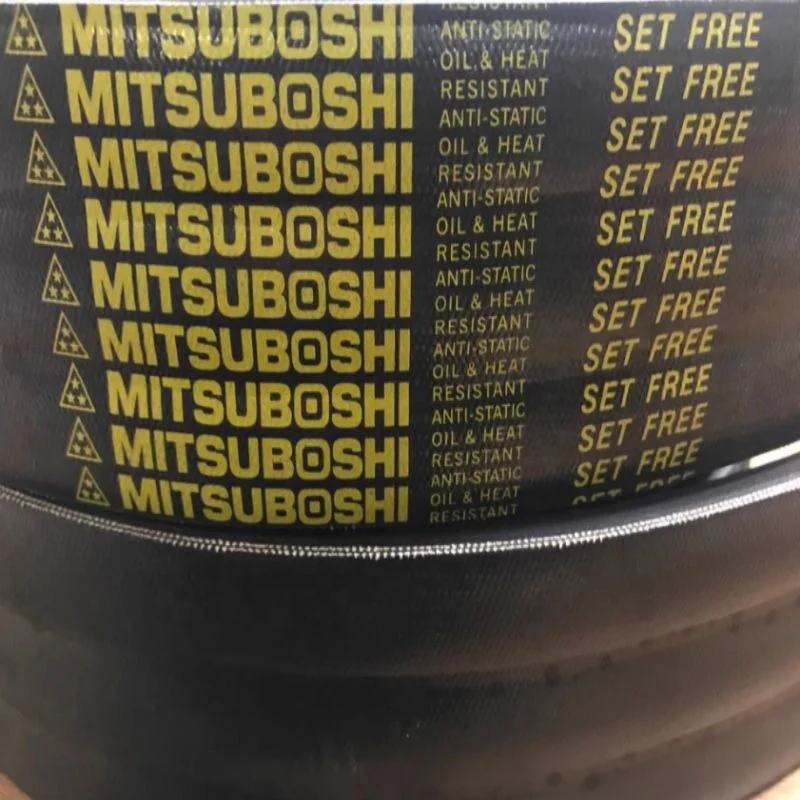

3/B154 Classic Banded V-Belt
The V-belt is the one with the largest output, the most varieties and the widest application among the transmission belts. The main equipment for power transmission and speed change of various mechanical devices is widely used in fields such as agricultural machinery, machine tools, automobiles, ships, and office equipment, and plays an increasingly important role.
Feature
Multiple special designs
Equal power transmission
High loads,low elongation and long service life
Excellent operational safety
Temperature range from -55℃ to 70℃
Static conductive to ISO1813
Oil,heat,Ozone and abrasion resistant
Applications
-- Blending systems
-- Choppers
-- HVAC systems
-- Lawnmowers
-- Compressors
-- Crushers
-- Scarifier
Type
Top width
Pitch width
Height
Length range
Angle
mm
mm
mm
mm
Z/FM/O
10
8.5
6
280---2480
40°
A
13
11
8
330---8000
40°
B
17
14
11
457---17000
40°
C
22
19
14
700---17000
40°
D
32
27
19
1100---17000
40°
E
38
32
23
3300---17000
40°
Type
Top width
Pitch width
Height
Length range
Angle
mm
mm
mm
mm
3V
9.5
/
8
375--3353
40°
5V
16
/
13.5
795---17000
40°
8V
25.5
/
23
2500---17000
40°
SPZ
10
8
8
375---3353
40°
SPA
13
11
10
475---7200
40°
SPB
17
14
14
750---17000
40°
SPC
22
19
18
1350---17000
40°
Type
Top width
Pitch width
Height
Angle
mm
mm
mm
3L
9.8
/
5.6
40°
4L
12.7
/
8
40°
5L
16.8
/
10.5
40°
8.5*8
10.5
8.5
8
40°

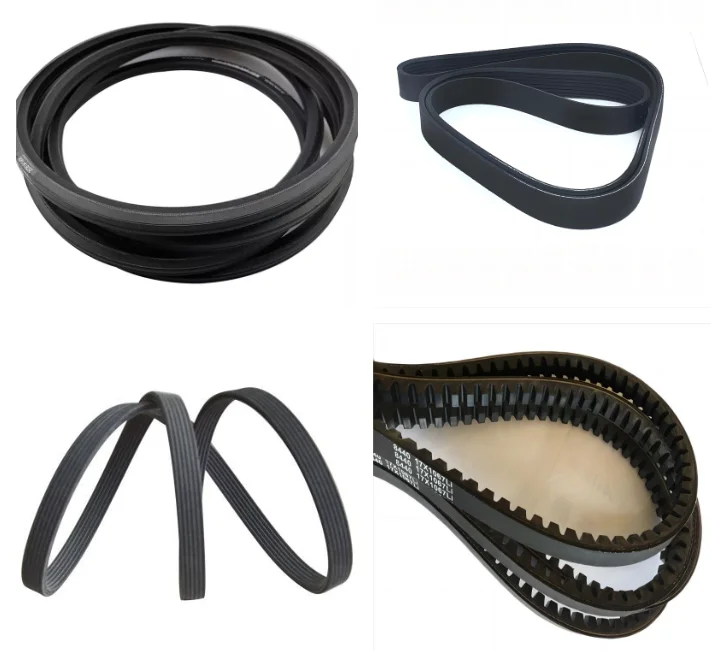

1. Produce all kinds of PU timing belts, including open type, connection type, seamless type, and various models and specifications are complete. 2. Specially processed various PU timing belts, with surface processed rubber (red, green, white), transparent TPU glue, sponge rubber, with surface processed baffles (various shapes and structures), de-toothed, slotted, punched. After the belt surface is thickened, the grooves are horizontally and vertically slotted (according to the specified shape). 3. Production and processing of PVC, PU, PE, silicone conveyor belts, processing guide bars, baffles, skirts. With surface processing wear-resistant rubber (red, green, white), patterned rubber, sponge. The belt can be slotted and punched. 4. Professional wholesale and retail of various types of rubber timing belts, thickened timing belts, and rubber V-ribbed belts, with more than 2,000 stock specifications. 5. Professional processing and wholesale of various domestic film-based transmission flat belts.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
ABOUT US ANGASE is focusing on rubber/PU products,material handling, power transmission and industry application.We are aimed at helping our customers increase production efficiency,offering quality transmission belts with high strength, low abrasion,resistant to impact and cut. Excellent quality and professional service is alwaysour principle since the company was established.With extensive producing technology and rich workingexperience. ANGASE are dedicated to providesurpassing value for money to help our clients cutcost , grow more business and expand more markets.
FAQ
Q1. What do our company mainly produce?
We are professional manufacturer industrial belts,haul-off( cable) belts, polyurethane/PU timing belts, rubber timing belts, coated timing belts, multi-groove belts, V belts, sausage machine belts and more.
Q2. What about the lead time?
A:Sample needs 5-7 days. Mass production needs to be based on actual quantity.
Q3. Can I have a sample order for the belts?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5: What are the payment terms?
Western Union, Paypal, Xtransfer or T/T (company account and personal account) etc.
Q6.What about the price?
The price depends on different specifications, we will provide the most reasonable price.
